Arg2P #

Arg2P is a lightweight implementation of the ASPIC⁺ framework for structured argumentation. Built on top of the tuProlog engine, it supports both JVM and Node environments.

Getting Started #

Arg2p is available as a 2P-Kt library.

JVM Library - Gradle #

To import the Arg2p module (version ARG2P_VERSION) into your Kotlin-based Gradle project, declare the dependency in your build.gradle(.kts) file:

repositories {
   mavenCentral()
}

dependencies {
   implementation("it.unibo.tuprolog.argumentation:arg2p-jvm:ARG2P_VERSION")
}

Usage Example #

import it.unibo.tuprolog.argumentation.core.Arg2pSolverFactory
import it.unibo.tuprolog.argumentation.core.libs.basic.FlagsBuilder

fun main() {
    val graph = Arg2pSolverFactory.evaluate("""
        f1 :=> d.
        f2 :=> -d.
    """.trimIndent(), FlagsBuilder()).first()

    graph.labellings.forEach {
        println("${it.label} : ${it.argument.conclusion}")
    }
}

For a complete example, check out the GitHub demo.

NPM Library #

The Arg2P software is available on NPM as a JavaScript library as well. It can be found under the @tuprolog organization. To use the library, add the dependency to your package.json:

{
  "dependencies": {
    "@tuprolog/arg2p": "ARG2P_VERSION"
  }
}

Usage Example #

const arg2p = require('@tuprolog/arg2p').it.unibo.tuprolog.argumentation.bridge.JsBridge

const graph = arg2p.solve('buildLabelSets', `
    f1 :=> d.
    f2 :=> -d.`, `
    graphBuildMode(standard_af).
    statementLabellingMode(statement).
    argumentLabellingMode(grounded_hash).
    orderingPrinciple(last).
    orderingComparator(elitist).
    graphExtension(standardPref).
    queryMode.`, _ => { }).i.next().graph

graph.arguments.forEach(arg => {
    console.log(`${arg.label} : ${arg.descriptor}`)
})

For a complete example, see the repository.

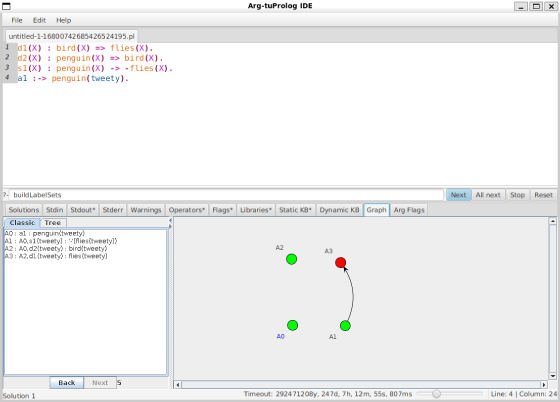

Arg2p IDE #

The Arg2p IDE is available on the Releases section of the GitHub repository.

In the latest release page, download the Asset named:

arg2p-ide-ARG2P_VERSION-redist.jar

a self-contained, executable Jar containing the 2P-Kt-based Prolog interpreter (ARG2P_VERSION will vary depending on the actual release version).

After you download the arg2p-ide-ARG2P_VERSION-redist.jar, you can simply launch it by running:

java -jar arg2p-ide-ARG2P_VERSION-redist.jar

If your JVM is properly configured, you can also start the IDE by double-clicking the JAR file.

Features #

• Query Execution: Write your query in the text field and hit Enter or click >.
• Solution Exploration: Click > for the next solution or >> to compute all solutions.
• New Query: Click X to stop the current query, then enter a new one.

Additional Tabs #

• Graph Tab: Displays a graphical representation of the abstract argumentation graph.
• Arg Flag Tab: Shows and allows modification of Arg2P flags. Detailed descriptions are on the official wiki.

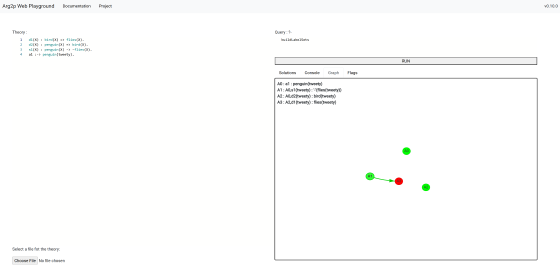

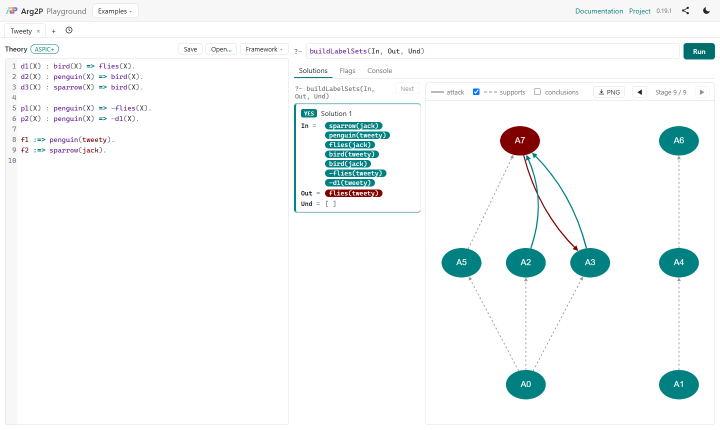

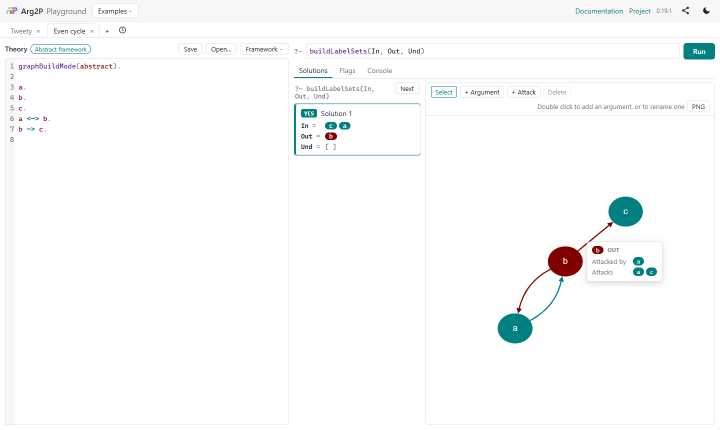

Arg2p Playground #

Try Arg2P directly in your browser using the Web Playground.

It functions the same as the Java IDE, offering an interactive experience without installation.

Issue tracking #

If you encounter any issues, please report them on the GitHub Issues page.
Your feedback helps improve the project!
